Aluminum Cantilever and Super Line nature diamond stylus

Turtle MC cartridge is the first cartridge released by Jasmine Audio, It also the best price performance cartridge of Jasmine Audio. The cantilever and stylus of Turtle come from Swiss Gyger, type FG2, 0.3x0.7mil Super Line Diamond stylus, very good tracking ability and sound performance.

Innovative coil structure, Patent technology

Electromagnetic conversion efficiency of cartridge increase about 10%, The sound is more sensitive and more delicate.

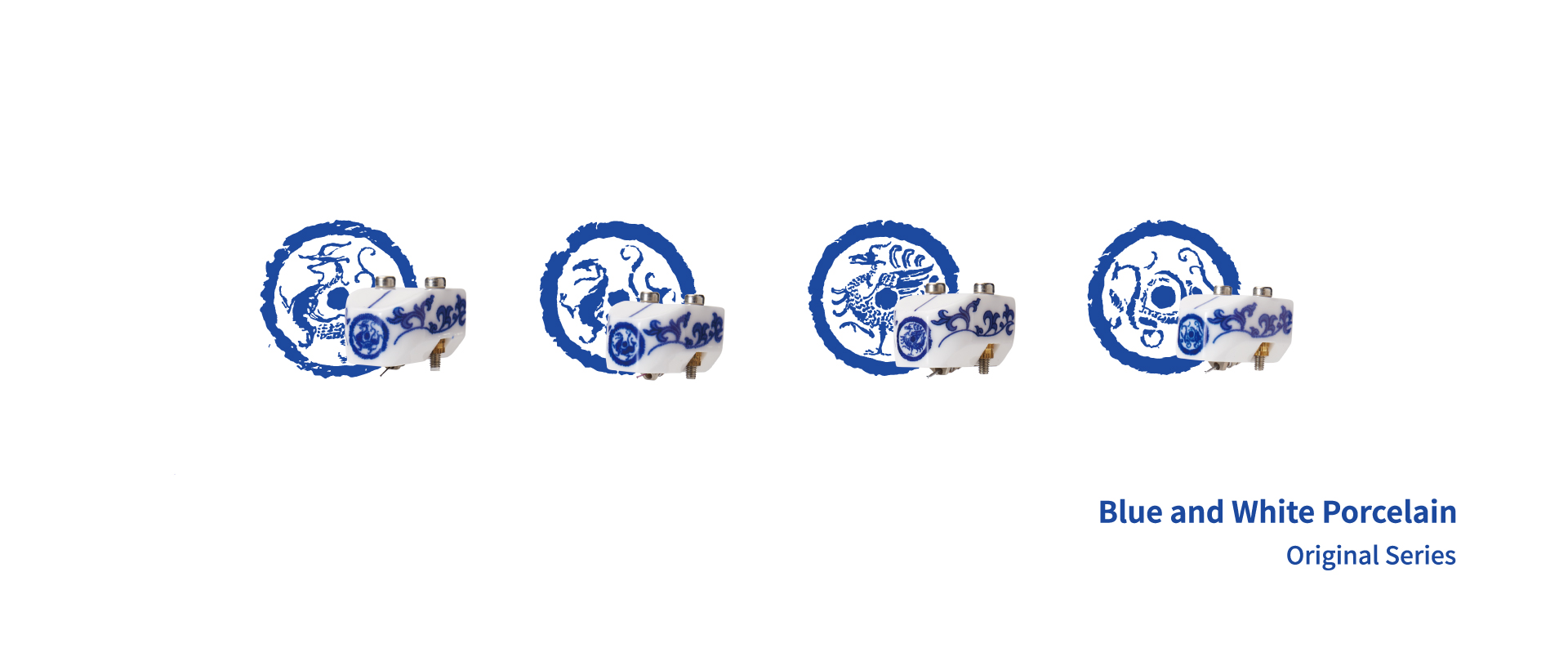

Blue and white porcelain shell, gives the sound of Chinese characteristics

Blue and white porcelain introduces a distinct Chinese cultural characteristics, pleasing to the eye and ear, It is the perfect combination of audio-visual .

Specification

    Type

    MC

    Shell

    Blue and white porcelain

    Stylus

    0.3x0.7mil Super Line Diamond

    Cantilever

    Aluminum Tube

    Height

    18.5mm

    Weight

    14.5g

    Internal Impedance(DC resistance)

    19 Ohm

    Output Voltage

    0.38mv, 1KHz@ 33 1/2

    Freq. response

    10 -40KHz +/-1dB

    Channel separation

    > 30dB@1KHz

    Channel balance

    < 0.5dB

    Optimal Tracking Force

    1.5g ~ 2.5g

    Optimal Tracking Angle

    24 degree

    Break-in Period

    20 hours


    Compliance

    12 um/mN
